Electric Straddle Carrier

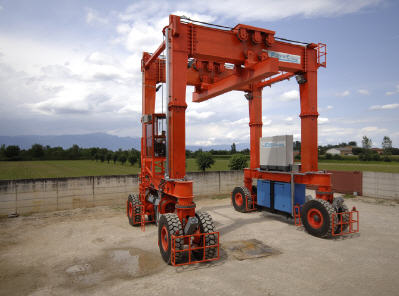

EVA Straddle Carrier

innovative technology without hydraulic and without steering cylinder.
EDEN´s new creation: a fully electric straddle carrier for prefabrication plants, more cost efficient and more reliable.

Realised improvements

offering an energy saving machine using electric motors
steering of the carrier boogies with no actuator, by using the translation motors for the rotation.
manufacturing a straddle carrier with fewer components reduces ithe price and the maintenance costs.
using electric motors is a contribution to environmental sanity: electric motors are a lot more efficient than hydraulic ones. EVA does not need installation of hydraulic hoses and pipes, eliminating the risk of pollution by leakages.
producing a complete range of standardized Straddle Carriers from 20 to 400 ton with an innovative technology creates a value to the client.

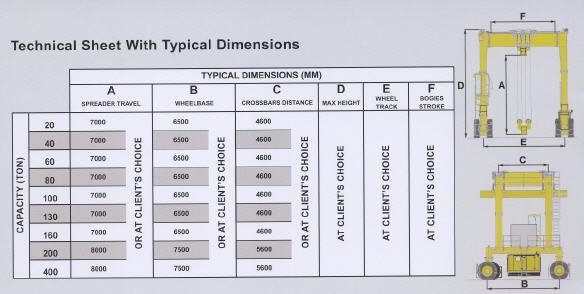

Characteristics of the EVA Straddle Carrier

Type of Machine:	Straddle Carrier with all movements controlled by electric motors.
Lifting Capacity:	Standardized lifting capacity with custom made dimensions.
Working Ambience:	-20C°/ +50C° on every type of terrain ± 5% slope admitted. Custom build solutions for other conditions.
Electric Devices:	2 electric motors for each bogie (steering and translation) 1 electric motors for each winch and trolley
Safety:	CE and CENELEC marking
Accessories and Options:	Spreaders - Clamps - Telescopic Spreaders for different purposes

Main characteristics of EVA Straddle Carriers

Der benötigte Strom wird durch einen Generator erzeugt (Antriebsaggregat)
Durch Rotation in entgegen gesetzte Richtung drehen die beiden Reifen die Radgruppe um ihre eigene Achse und lenken so den Straddle Carrier in die gewünschte Richtung
proportional electric movements translation movements are controlled by frequency variators that receive input from the joysticks via can bus. Movements are proportional to operator´s command.
Electric Lifting Devices Lifting winches and trolleys are moved by electric motors. The System is, compared with traditional hydraulic machines, energy saving.

Other characteristics of EVA Straddle Carriers:

Servo ventilation for better con formance with all environment temperatures
Tropicalization for long lasting performance
heaters for wet environment
Diesel Engine in compliance with the latest regulations on emissions (step 3 or higher)
Tray for collecting eventual oil or diesel leackages of the engine
sound proof electric generator for better comfort of the operator and workers around the equipment.
All Season conditioned control cabin with comfortable arm-chair
Night working lights for continuouse use
Diesel Tank with high capacity for non-stop operation
Detailed spre part list and electronic-mechanical schemes for quick maintenance
Bumpers in front of the tyres with automatic limit switches that provide immediate stop of the equipment
First class specially designed wire ropes for long lasting operation
Oversized bearings and slewing rings for life lasting use
First quality gear reducers
Robust tyres for "job-site" use

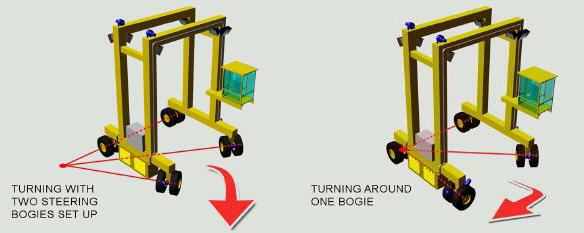

Steering Options EVA Straddle Carrier:

Your Load - our solutions

We have decades of experience in technical sales and distribution of Straddle Carriers, Gantry Cranes and special purpose vehicles. Over the years we have realized multiple machines in the capacities from 10 ton to 1000 ton.

We would be pleased to make you a quotation tailor-made to your requirements.
Contact us and we will evaluate the basics of your requirements together with you in order to offer you the solution that meets your special purpose the best.
